Suitable for various tires of large vehicles, applicable to tires with ring and layering, the meridian vacuum tire, agriculture tires, engineering machine, etc. It saves human resources, work time, and energy. With high efficiency, no need to strike the tires with big hammers, no damage to wheel and rim. An ideal choice for tire repairing & maintenance.

Mount/Demount arm allows ease of use.

The modern wireless remote-control makes the operation much more convenient.

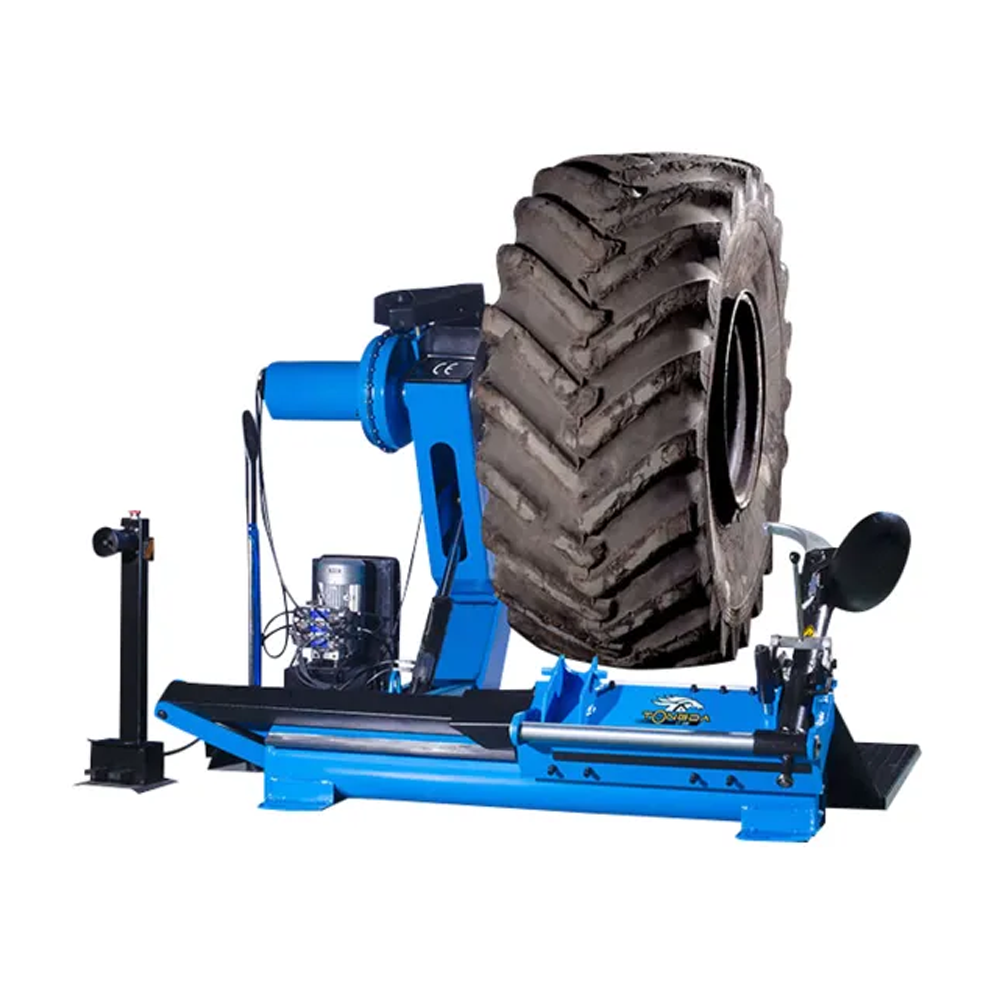

TRUCK TYRE CHANGER (LT-690)

SKU: LTTC-004
R151 181,25Price
  • OPERATING VOLTAGE 24V, safe & stable.
    APPLICATION RANGE Tuck / bus / tractor / industry vehicle
    MAX. WHEEL WEIGHT 1600 kg
    MAX. WHEEL WIDTH 1065 mm
    MAX. OUTER DIAMETER OF TYRE 2300 mm
    CLAMPING RANGE 14?-56? (355-1422 mm)
    DRIVING POWER OF HYDRAULIC PUMP 1.1 Kw 380 v-3PH
    DRIVING POWER OF GEAR MOTOR 2.2 Kw 380 v-3PH
    NET WEIGHT 887 Kg
    GROSS WEIGHT 1080 Kg
    MIN. INNER DIAMETER OF RIM 130-1045 mm
    MAX. SLIDING DISTANCE OF MOUNT/DEMOUNT ARM 1703 mm
    OPERATION VOLTAGE 24 V
    ROTATION SPEED 7.34 Rpm
    BEAD-LOOSENING FORCE 2500 KG
    WORKING PRESSURE (13 MPa – 20 MPa)
    CLAMPING FORCE 4000 Kg
    NOISE <70 Db
    SHIPPING DIMENSION 2300 × 2000 × 930 mm



    WEIGHT 1150.00 kg
    DIMENSIONS 219.00 × 94.00 × 107.00 cm
